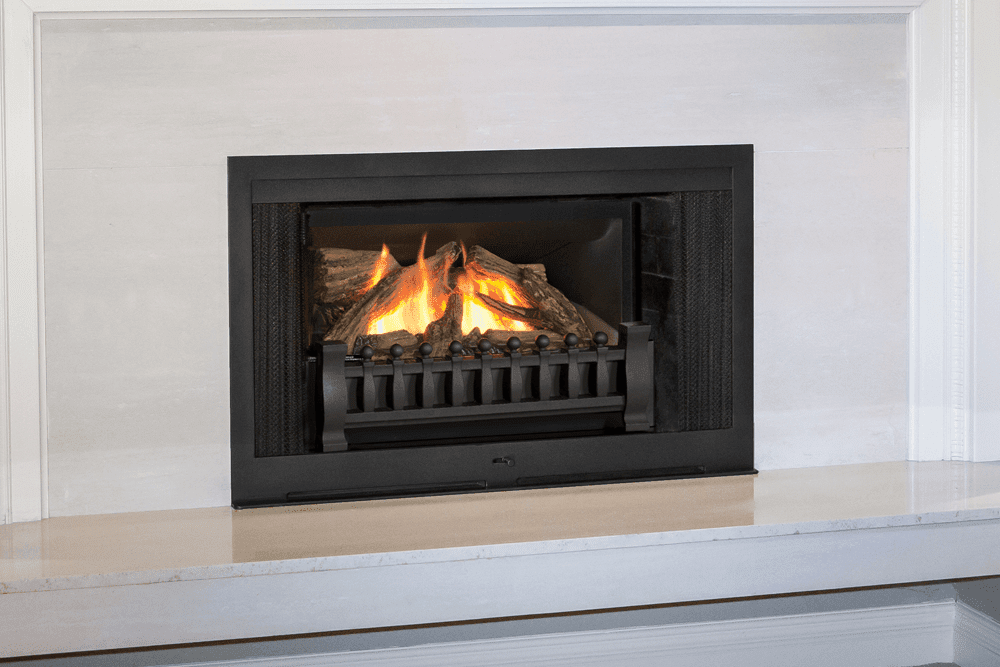

Now there is – quick and easy way to turn your existing fireplace into an energy efficient heat source. Engineered to keep the heat inside your home rather than up the chimney, the RetroFire insert is designed for installation within existing masonry and factory-built wood burning fireplaces.
The direct vent co-linear RetroFire is now available with AutoFire to dynamically tune your fireplace for peak performance. AutoFire provides improved operating efficiencies resulting in energy savings in your home.
*Only co-Linear engines are equipped with the Valor AutoFire system.
Product Request a Quote
Specifications
| Model | Max Input | Min Input | Max Output | Energuide |
|---|---|---|---|---|
| RF24"DN-CA | 20,000 | 6,500 | 14,322 | 70.03% |
| RF24"DN-CL* | 20,000 | 6,500 | 14,294 | 64.20% |
| RF24"DP-CA | 18,000 | 12,500 | 13,24""/td> | 67.18% |
| RF24"DP-CL* | 18,000 | 12,500 | 12,118 | 57.74% |
| Gas Type | Natural Gas (NG) or Propane (LPG) |
| Remote Control | Quick Guide - Manual |
| Viewing Area | 21 ½" - x 11 ¾" - = 252 â…"² |
| Min. Cavity Dimensions | 27" - x 20" - x 14 â…›" d |
| Optional Wall Control | 1265WSK |
| Installation Type | Direct Vent |
| Safety Features | Barrier screen - Learn More |
| CAD's | Fireplace CAD details. |
Additional information
| Brand | Valor |
|---|---|
| Fuel Type | Gas |
| Product Type | Insert |
| Design Style | Contemporary |
